Notice:
1. Language: English, Spanish, French, German, Norwegian, Russian, Persian, Arabic, Polish, Hindi and Portuguese
2. Dealer Code: XT0240
3. Free Update Online for Two Years
4. Can't Support Indian Cars
Note: If you from Brazil, could buy Portuguese version from local dealers directly
Click Here XTOOL X100 PAD and X100 PAD2 comparison table
X-100 Pad Functions:
* Key programming
* Oil Reset/engine oil light reset
* Odometer Adjustment
* Tire Pressure Warning Light Reset (Manual Operation)
* Timing belt light reset (Manual Operation)
* EPB Electrical Parking Brake Adaptation
* TPS Throttle Body Adaptation
* Steering Angle Calibration
* Battery Reset
* PIN Code Reading
* Hexadcimal editor(Win Hex)
* OBDII Diagnosis
* Support the latest vehicles with CAN BUS and UDS protocol
* Update Via WIFI (always equip your device with the latest software)
* More…
X-100 PAD Key Programming Features:
1. New keys programming
2. PIN Code Reading with EEPROM
3. Hexadcimal editor(Win Hex)
2. Reads keys from immobilizer's memory
3. New immobilizer programming
4. Vehicle Identification Number programming
5. Reset ECM & reset immobilizer
6. New remote controller programming
7. With full and strong database for the most important vehicle makes
X100 Pad Key Programmer Vehicle Coverage:
Asia: Toyota, Lexus, for Honda, Acura, Mazda, Nissan, Infiniti, Mitsubishi, Subaru, Suzuki, Kia, Hyundai, Daewoo, SSANGYONG, etc
Europe: Audi, VW, Skoda, Seat, for PORSCHE, Opel, Citroen, Peugeot, Jaguar, Land Rover, Lincoln, Renault, etc
America: GM, Cadillac, Buick, Chrysler, FORD etc
China: Great Wall, Chery, Brilliance-auto, Geely, LIFAN, HAFEI, CHANGAN, LANDWIND, BYD, BYD , JAC, etc.
X100 Pad Key Programmer Oil Reset Functions Feature:
* Innovative one-click Oil Reset for VW, Audi, BMW, Mercedes Seat, Skoda, Volvo, etc.
* Support engine oil, spark plugs, front brake pads, back brake pads, air conditioner, brake liquid, coolant liquid, vehicle checking , etc. resetting for BMW. And the supported BMW models are F01/F02/F03/F04/F07/F10/F11/F12/F13/F18/F20/F30, etc.
* Support Mercedes Benz new C Class, E Class models and Mercedes Benz VITO/VIANO/SPINTER.
* Support the lifespan percentage resetting of engine oil for Buick, Cadillac etc.
* Support PORSCHE Cayenne, Panamera till 2012
* Support maintenance light reset for Volvo, Land Rover.
X100 Pad Key Programmer Oil Service Light Reset Coverage:
America: Buick, Cadillac, Chevrolet, Chrysler, Chevrolet/GMC, FORD/Mercury/Lincoln, Oldsmobile, Pontiac, Saturn, GM, Jeep and more…
European: VW, Audi, PORSCHE, BMW, Mercedes-Benz, Volvo, Land Rover, Peugeot, Citroen, SAAB, Seat, Skoda and more…
Asia: Toyota/Lexus, Nissan/Infiniti, Honda, Acura, Isuzu, Chery, FORD Transit, Roewe, MG and more…
X100 Pad Key Programmer Odometer Adjustment:
VW /AUDI/SEAT/SKODA, BUICK, CADILLAC, CHEVROLET, Chrysler, FORD, MAZDA, Nissan, SUZUKI, KIA, HYUNDAI, Jaguar, LAND ROVER, PORSCHE and more…
EPB Electrical Parking Brake Adaptation:
VW ( R36, CC, Magotan etc.), Audi ( A4L, A6L, Q5 etc.), Seat, Skoda and more…
Tire Pressure Warning Light Reset (Manual Operation):
Mercedes-Benz, GM, VW, BMW, Toyota and more…
Timing Belt Light Reset (Manual Operation)

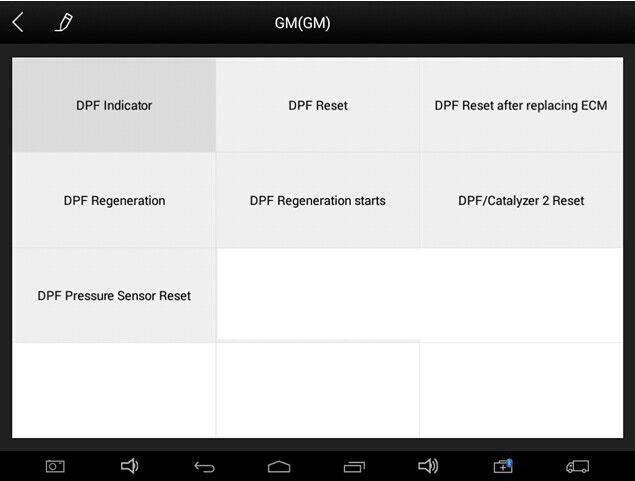

Exhaust Gas Treatment (DPF) Features:

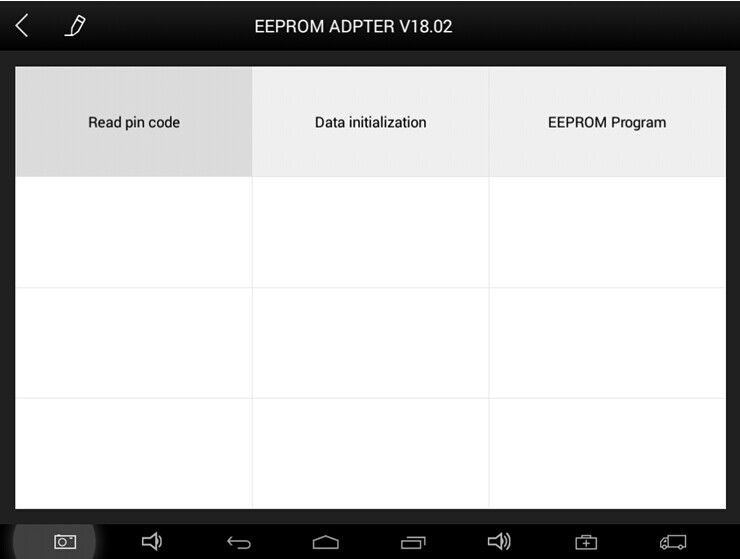

XTOO X100 Pad EEPROM Adapter Features:
1. PIN Code Reading
2. ECU Initializing
3. Chip Programming
XTOOL X100 PAD Cloud System:
The Xtool cloud service platform allows X-100 PAD users to look up maintenance information, share and access diagnosis test results and fault finding solutions, communicate with other X-100 PAD users in our forum, and also access various online databases of maintenance and diagnostic skills and vehicle maintenance plans.

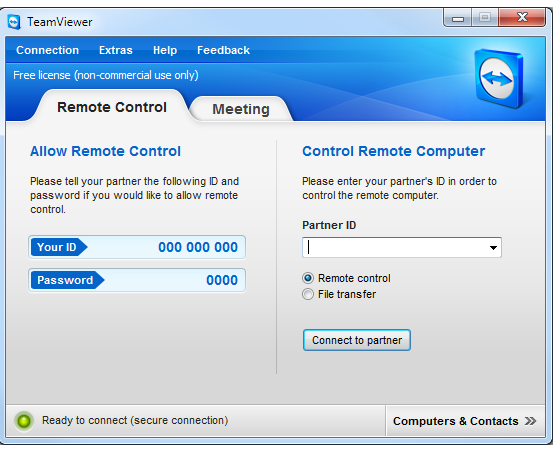

XTOOL X100 PAD Remote Diagnosis:
If users encounter problems and are not able to solve them, they can open this application and ask for remote assistance.
How to get remote assistance from Xtool Technical Assistance Center:
a. Open X-100 PAD
b. Click Remote Diagnosis and open the TeamViewer interface. Generate and display device ID.
c. Your partner will also need to download and install TeamViewer.
d. Inform your partner of your TeamViewer ID and password to enable them to begin remote access of X-100 PAD.
X-100 Pad Specifications:
Operating System: Android
Processor: Quad-core 1.30GHz Processor
Memory: 1G RAM, 8G FLASH
Display: 7 inch IPS 5-point multi-touch screen with 1024×600P resolution
Sensors: Gravity Sensor, Light Sensor
Audio Input/Output: Microphone, Dual Speakers, 4-Band 3.5 mm stereo/standard headset jack
Power and Battery: 2400mAh, 3.7V lithium-polymer battery
Power Voltage: 5V
Power Consumption: 8W
Operating Temperature: -20 to 50℃(-4 to 126℉)
Humidity: <90%
Dimension (L*W*H): 208*140*15.5mm
Difference Between XTOOL Products:
| XTOOL X100 PAD | XTOOL EZ500 | XTOOL EZ400 | XTOOL EZ300 | |
| Full System Diagnosis | yes | yes | Engine, ABS, SRS, AT | |
| Key Programming | yes | yes | ||
| Oil Reset/Engine Oil Light Reset | yes | yes | yes | yes |
| EPB Electrical Parking Brake Adaptation | yes | yes | yes | |
| TPS Throttle Body Adaptation | yes | yes | yes | |
| Odometer Adjustment | yes | yes | ||
| EPS Electric Power Steering Calibration | yes | yes | ||
| Gear Learning | yes | yes | ||
| ABS Exhaust | yes | yes | ||
| ECU Reset | yes | yes | ||
| Tire Pressure Warning Light Reset | yes | yes | ||
| Battery Reset | yes | yes |

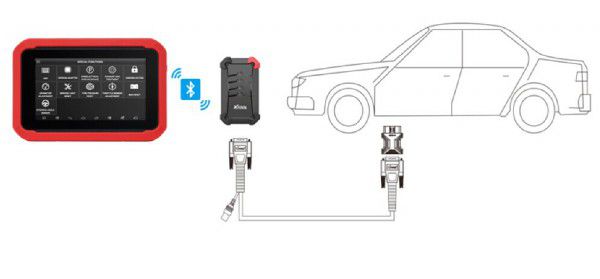

X-100 Pad Connection Picture:
How to register xtool x-100 pad key programmer?
- Well connect your xtool x100 pad with network/WIFI
- Power up the x-100 pad and welcome to main interface
3. Press Login account and login with e-mail address
4. It will also require to enter “Activation Code” which you can find on the user manual
5. Complete all information and click “ACTIVATE” button
Note: Please DO NOT forget your login e-mail address and password. Otherwise you are on your own risk!!!
6. Activation complete brings the x100 pad main menu.
For activation code, you will find it on the cover of the user book. Serial number, you can find the information on about function of the PAD when you power on the PAD. Nickname you can use any name you want. For login account, please use your valid email address or phone number. For password, you can setup any number you like. PLEASE DO NOT forget the account and password you set up. They system will save it after done. Activation is a one time process. The diagnostic application will start after activation.
After you finish activation, when new software release in future, you can directly update your tool via WIFI.
XTOOL X-100 Pad Package including:
1pc x X-100 Tablet
1pc x PS_VCI Box
1pc x OBDII 16Pin Adapter
1pc x Honda-3
1pc x Kia-20
1pc x Kia/Hyundai-10
1pc x Power Adapter
1pc x EEPROM Adapter
1pc x EEPROM IC Board
1pc x EEPROM Package Box
1pc x Test Main Cable
1pc x Mirco USB Cable
1pc x User's Manual
