VAG IMMO Emulator For VW/Audi
VAG IMMO Emulator For VW/Audi

VAG IMMO Emulator For VW/Audi

VAG IMMO Emulator for VW Golf III, Passat B4, VW Sharan 98,Lupo 98,Polo 98, T4, VW LT35,Audi 100, A6, A4, A8,VW B5, Golf IV, New Beate, Audi A2, A3, A4, A6 and TT.
Item No. COBD2468
5 stars, 9 reviews.
In Stock
Price:
US$41.00/ piece
Discount Price:
US$26.99/ piece 34%
Quantity:

Shipping:
Airmail Post
Estimated delivery time: 7-45 working days.See details?
Returns:
Return for refund within 7 days,buyer pays return shipping.Read details »
Support:
Online Chat Ask a question
VAG IMMO Emulator For VW/Audi
  • VAG IMMO Emulator For VW/Audi
  • VAG IMMO Emulator For VW/Audi

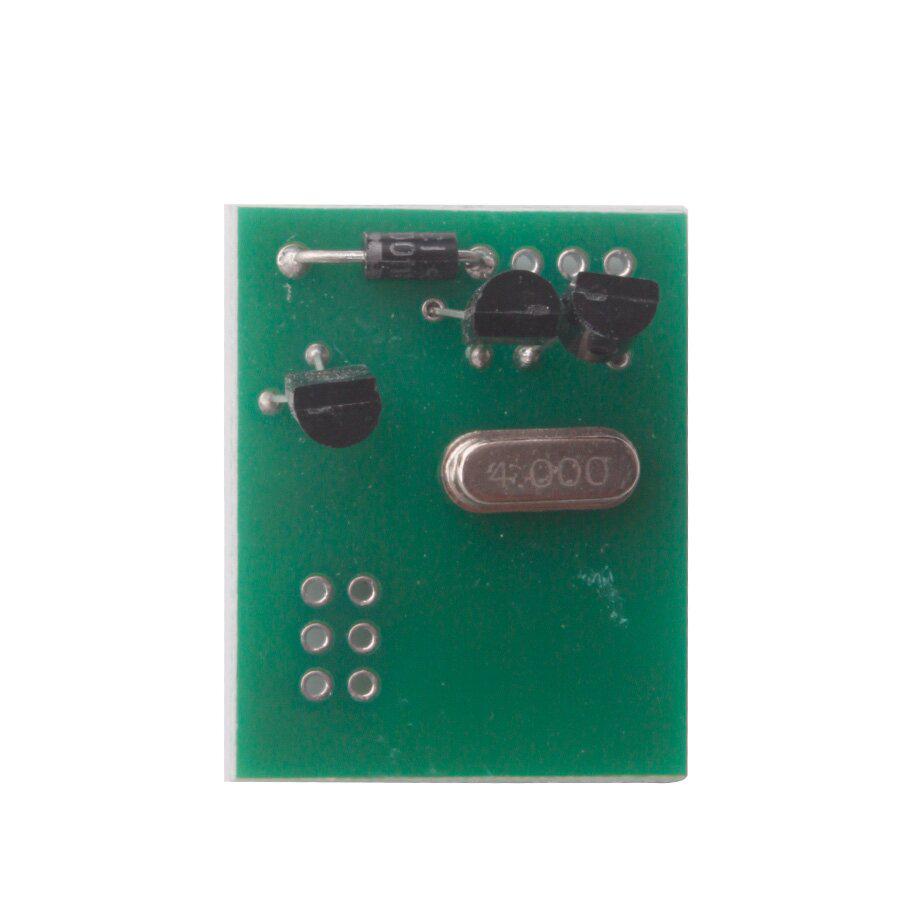

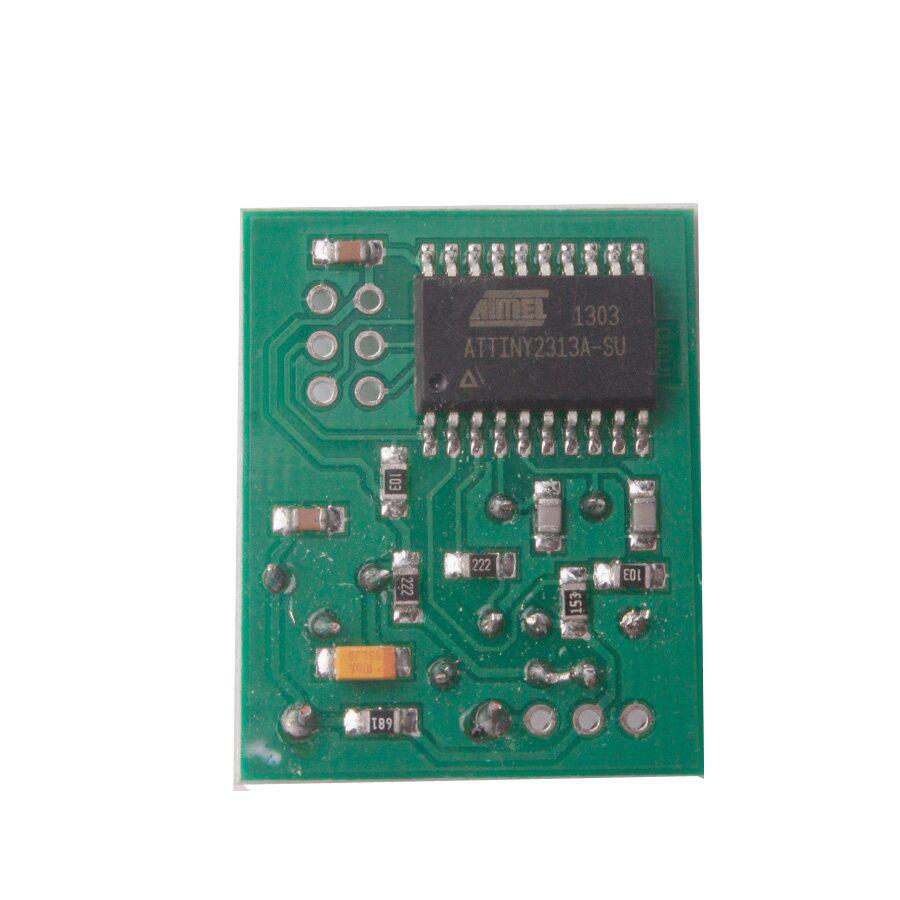

VAG IMMO Emulator

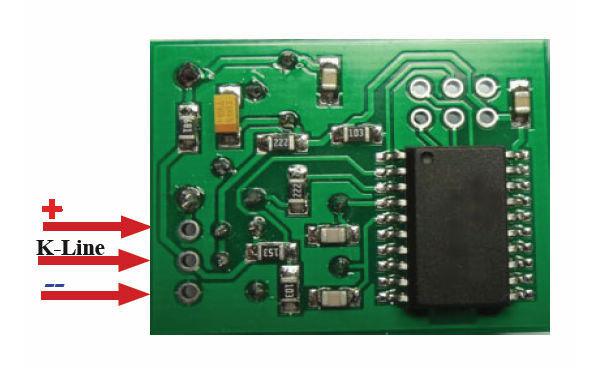

Connection Diagram:
VAG IMMO Emulator
For cars with separated IMMObilizer box, short W and K lines and remove
IMMObilizer box.
For cars with dashboard immobilizer, cut W line from dashboard

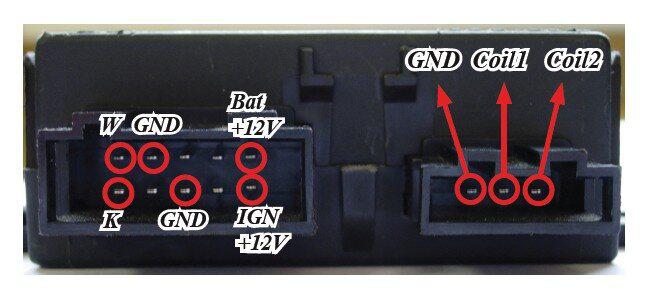

VW Golf III, Passat B4
Immobilizer box side

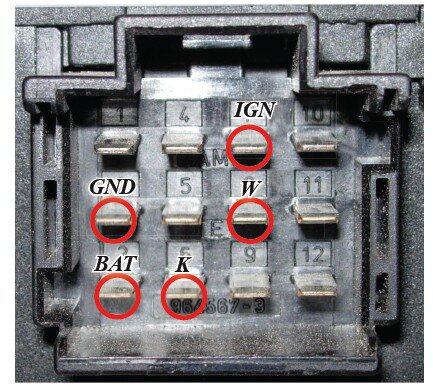

VW Sharan 98, Lupo 98, Polo 98, T4
Immobilizer box side

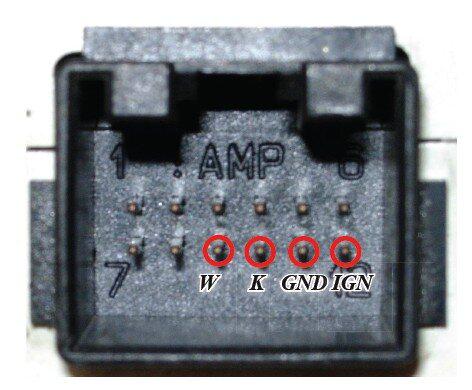

VW LT 35

Immobilizer box side



Audi 100, A6, A4, A8

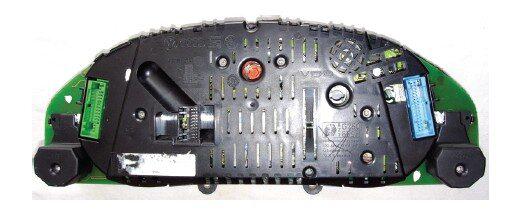

VW B5, Golf IV, New Beate, Audi A2, A3, A4, A6, TT

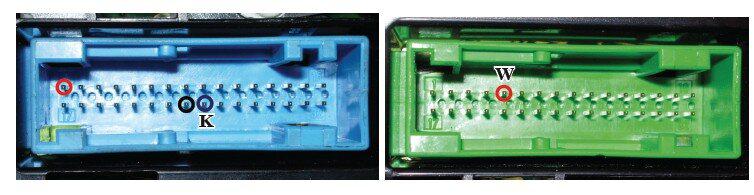

GND --- Dashboard Blue connector pin 24
K --- Dashboard Blue connector pin 25
W --- Dashboard Green connector pin 5
IGN +12V --- Dashboard Blue connector pin 1



Package including:
1pc x VAG IMMO Emulator
