2023 Newest CGDI CG100X New Generation Programmer for Airbag Reset Mileage Adjustment and Chip Reading Support MQB

CGDI CG100X New Generation Programmer for Airbag Reset Mileage Adjustment and Chip Reading

CG100X is the new generaiton programmer for airbag resetting, mileage adjustment and chip reading, covering 90% of models and modules on the market, including American, German, French, European, Korean, Japanese, Italian, domestic series, as well as engineering vehicles and motorcycles, it is powerful and the first choice for opening a store. Stable and safe, convenient and intelligent.


Highlights:

1. Functions Including Airbag Reset, Mileage Adjustment, ECU and BCM Chip Reading
2. Support BMW Land Rover Key match
3. Free Update for 1 Year, after one year, it will cost $89 per year. Not force to update, device can still perform if you don't want to pay for the update cost after the first year.
4. Language: English/ Chinese
5. CG100X Support List:
CG100X Airbag Reset Vehicle List
CG100X Dashboard Vehicle List
CG100X ECU Vehicle List

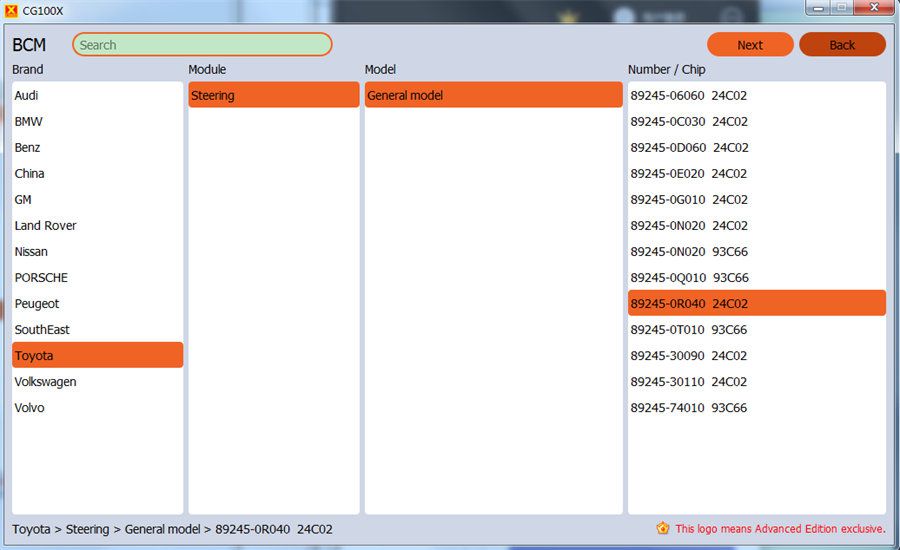

CG100X BCM Vehicle List

CG100X Functions List:



1. Meter mileage adjustment
The software is embedded with intelligent algorithms, and the mileage data is automatically analyzed. It supports more than 4,600 car models, with a success rate of over 95%. It is closely following the market and is being upgraded in real time. It supports VW MQB mileage repair, includes D70F3526 (A2C81589700) (read write), D70F3529 (read write), D70F3532 (A2C81589500) (read write). Car models cover Golf, Magotan, Lavida, T-ROC, Tayron, Bora, Sagitar, Lamando, CC, Variant, Teramont, Skoda, Octavia, Kodiak and other models.

Operation:

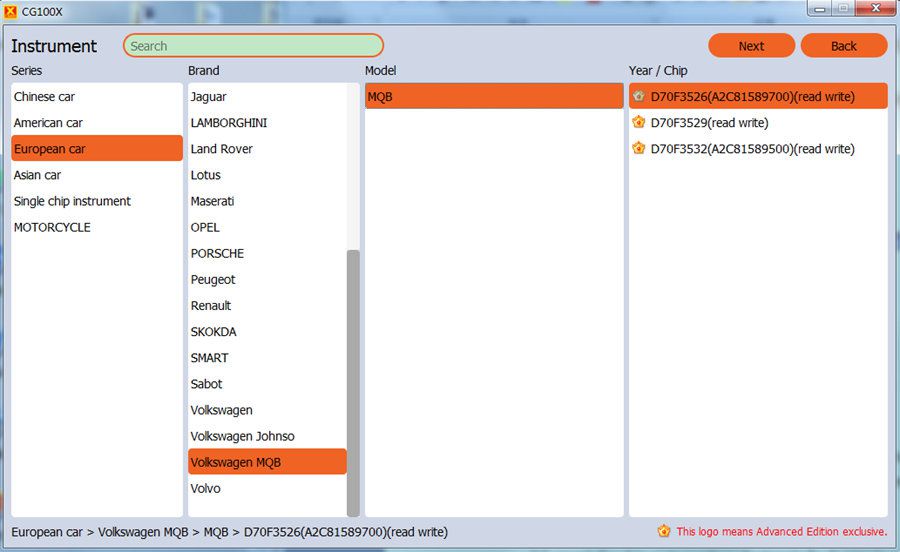

Enter"Dashboard"function, select car series, brand, model and year/chip, double-click the year/chip you selected or click "Next", and you can see the related operation instructions (precautions, EEPROM adapter required and wiring diagram). Then click "Start Operation”
"to do step by step.

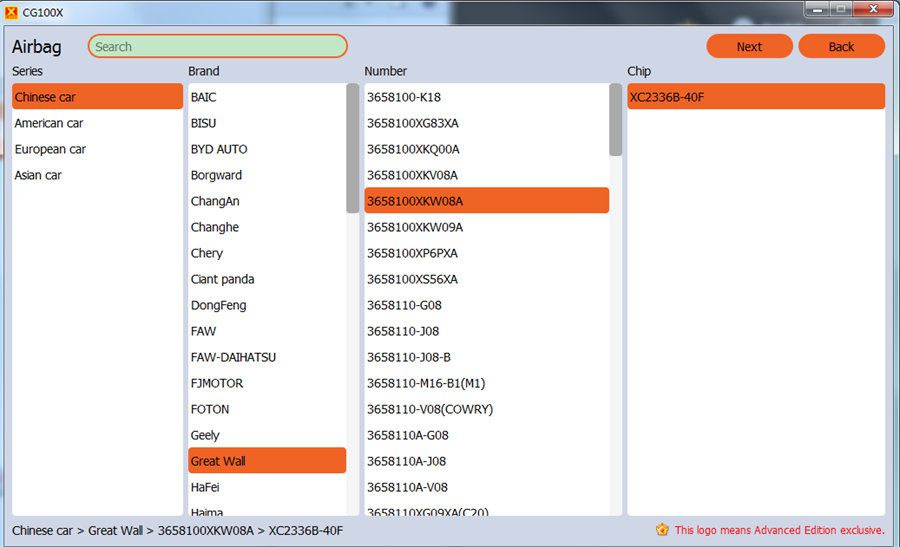

2. Airbag computer reset
Contains more than 4,500 ACU models, dedicated to solving airbag faults, analyzing the cause of the light, perfectly clearing the fault code, giving car owners peace of mind, and more models are continuously added.



3. Car body failure maintenance
Focus on automotive electronic faults, good at repairing various common faults, support engine computer, steering angle, footwell module, keyless entry module, audio amplifier, gearbox computer, 48V light hybrid lithium battery, 12V lithium battery, etc. A body computer that provides vehicle data and assists repairmen in resolving vehicle failures.




4. Accessory clone replacement
Solve the pain points of the repair shop, a single device can replace accessories, data cloning, analysis and repair, one-click operation without asking for help.

5. Chip Data Burning
Covers more than 90% of automotive chips, supports more than 1,800 models, reads, modifies, writes, erases, partitions and saves to meet daily car repair needs, and can also use the browser that comes with the software to analyze data.

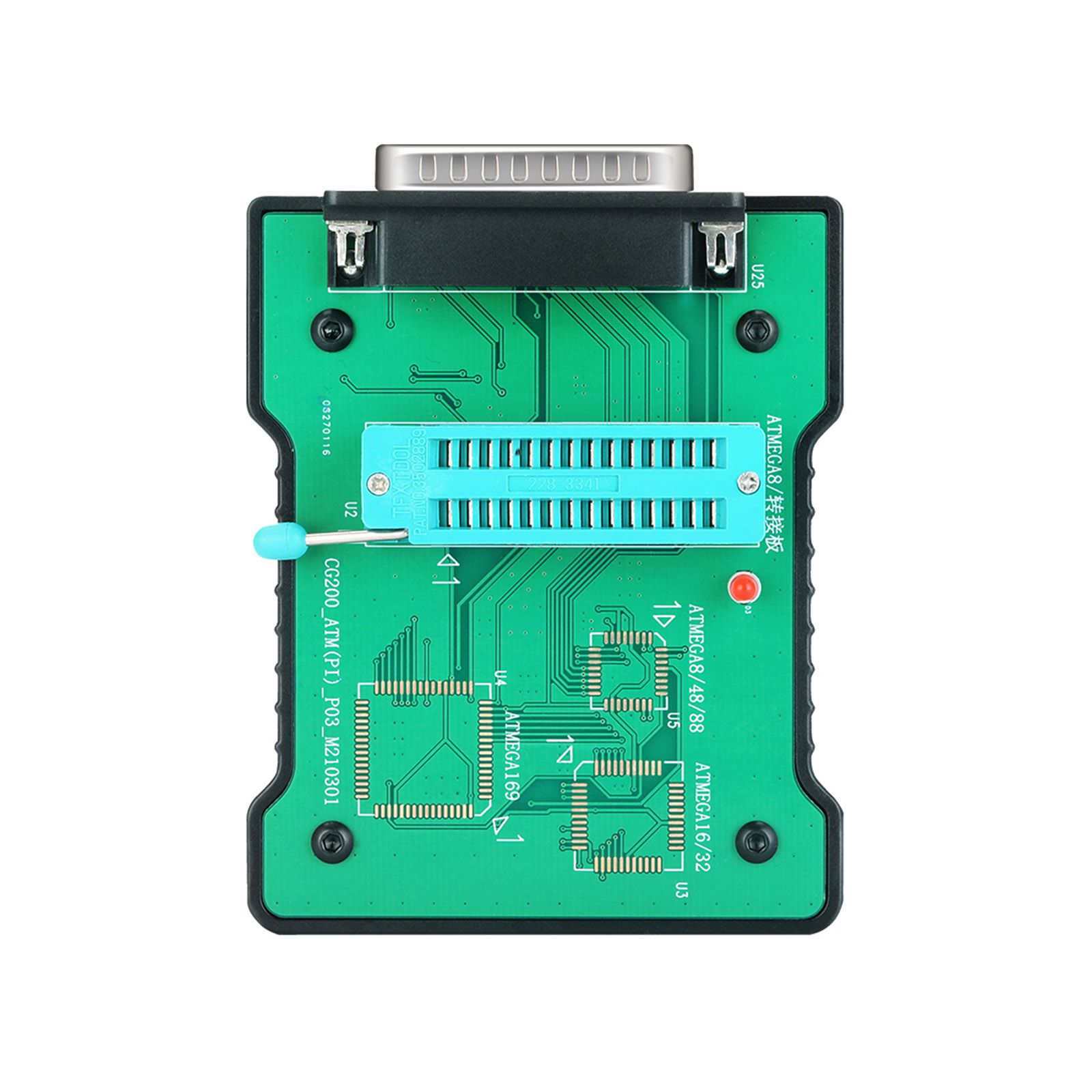

Octal Chip (EEPROM):
24 series, 25 series, 35 series, 93 series, 95 series, X50 series, S29 series, RH series, CAT10 series, CR series

Fujitsu
MB90 series, MB91 series, MB96 series

Microchip
PIC18F series

Texas Instruments (TI)
TMS series
NXP (NXP)
S32K1 series
Motorola/Freescale
9S08 series, 9S12 series, HC908 series, HC912 series, MAC series, MPC56 series
Atmel
ATMEGA series
Renesas
H8SX series, M32R series, R5F10D series, RH850 series, V850 series
Infineon
TC series, XC series
Saiyi Law (ST)
SPC series, ST10F series, STM32F series, STM8 series
Cypress/Spansion Semiconductor (Cypress/Spansion)
S6J series

6. Car key matching
Support BMW CAS series and Land Rover models, automatically display the key ID and usage status, and assist the locksmith to complete the key matching work.



CG100X Features:

1. Top ten accessories, functional classification
In addition to the main unit, it comes with 10 kinds of accessories, and the functions do not overlap; the DB25 connection method is used, which is more stable and safe; the wire number is clearly marked to avoid welding errors.

2. Reading and writing speed up, status monitoring
Compared with conventional programmers on the market, CG100X has an overall speedup of more than 120% for chip reading and writing, and some chips can reach 200%. The operation is monitored in real time to protect data and chips. For large-capacity eight-pin chips, the speed of reading and writing is increased by more than 500%, shortening the operation time, so that customers no longer have to wait, and truly achieve twice the result with half the effort.

3. Eight pins without dismantling, pin detection

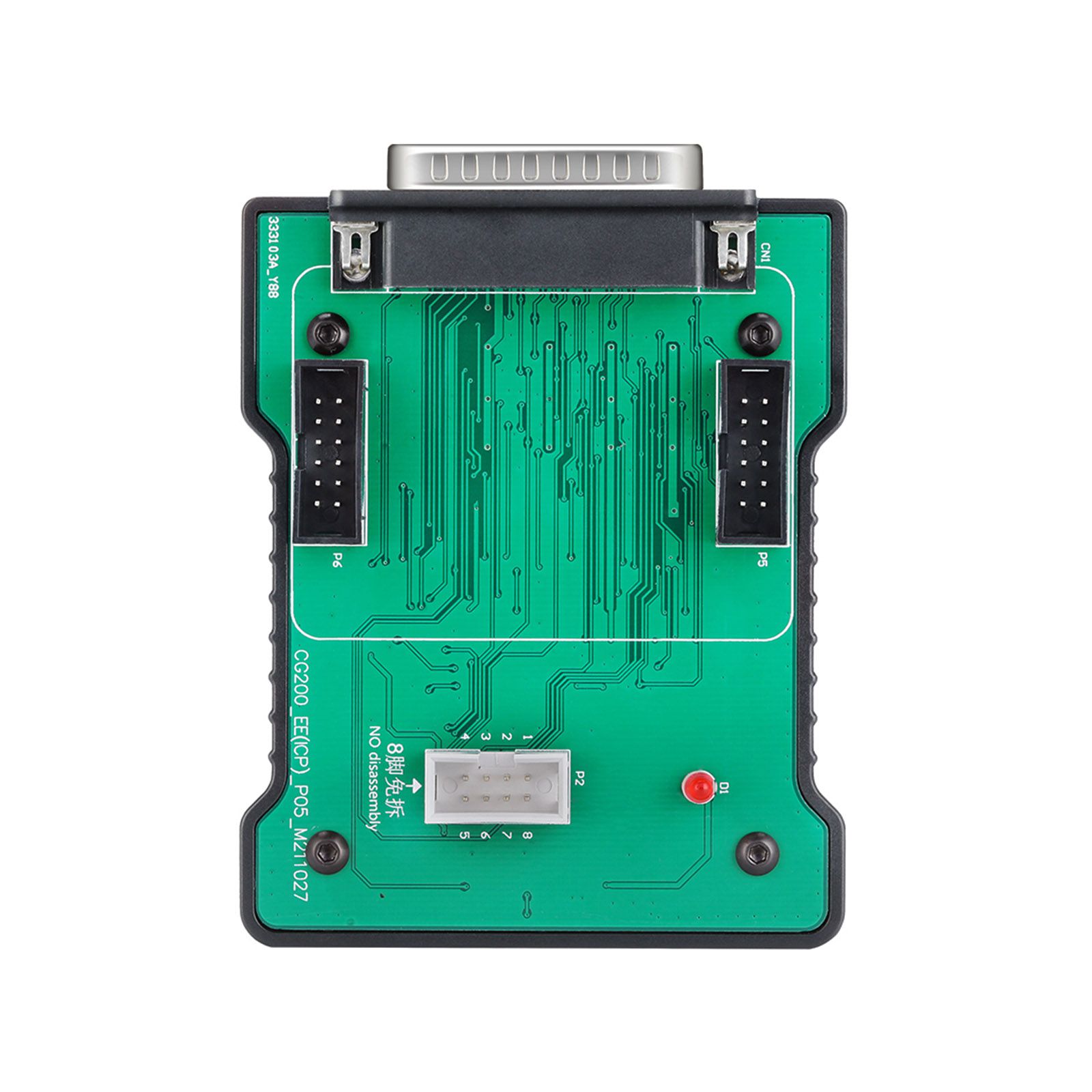

Supports eight-pin chips without dismantling, avoiding the risk of back and forth soldering. Strong drive capability, free from communication interference. Provide pin detection, red means poor contact, green means good contact, visually display the pin status. It is more compatible with Honda instruments without dismantling, and provides wiring diagrams to avoid motor damage caused by disassembling the pointer. More disassembly-free
wiring diagrams are continuously added.

4. Intelligent algorithm, real-time upgrade
Automatic analysis of instrument kilometers, the error does not exceed 32Km, some hybrid models support modification of HEV+EV, engineering vehicles can modify working hours, and more than 50% of trucks provide fuel consumption modification.

Airbag Computer Reset Provides Two Solutions: Fault Clearing and Data Overwriting.
Fault clearing:
The original data is stored in the chip, and the fault code is clear, such as collision fault or air curtain fault. If you choose this repair method, only the relevant fault data in the chip will be cleared, and other data areas will not be
affected.

Data Coverage: When we are not sure how many jobs we have received and the data is not the most original, we can choose this repair method. After replacing all the data in the chip, a fault code may be reported due to the different configuration of the vehicle, and we need to reprogram and match. Focus on the development of R7F7 instrument, D70F instrument, SPC instrument and new airbag computer, so that 100% of the eight-pin chip can be disassembled, and is committed to covering 99% of the models and modules in the market.

5. Hardware upgrade, data loss prevention
Although CG100X and CG100 are different in one word, the equipment is completely different. CG100X adopts the industry's ideal architecture design and is equipped with the world's most advanced MCU. It is known as a fighter among single-chip computers, and its operation is more stable and safer. The advantages in hardware come from market demand. We attach great importance to customer feedback and suggestions. CG100X will support new modules and new chips more easily.

Adopting DB25 communication interface, compact design, stronger driving ability, OBD mode can be upgraded later, and supports CAN, LIN, K and other automotive communication protocols.

6. Easy access, automatic search
● Open the software without plugging in the device, which is convenient for viewing the vehicle model and functions;
● The car model search automatically matches special characters such as spaces and bars, regardless of case;
● The general programmer search mask directly displays the chip;
● In the list interface, click to enter and press Enter to enter;
● Support picture scaling, display file open/save path.

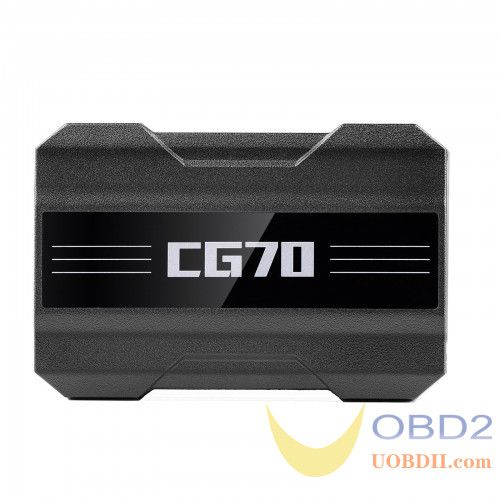

CG100X vs CG100 vs CG70

	CG100X	CG100	CG70
Hardware
	The connection software requires a 12V power supply, and the use process is needed	The connection software does not require a 12V power supply, The use process is needed	The connection software requires a 12V power supply, and the use process is needed
Packing	Plastic suitcase	White Carton Box	Plastic suitcase
Annual fee	Free update for 1 year, update cost $89/year. Device can still work if don't pay for update cost after the first year.	Free update for 1 year, update cost $89/year. Device can still work if don't pay for update cost after the first year.	First year is free to use, annaul fee is needed from the 2nd year
Language	English/Chinese	English/Chinese	English/Chinese
Features	1. Instrument adjustment 2. airbag repair 3. Body failure repair 4. BCM module read and write 5. Reading and writing of various non -encrypted chips 6. BMW Land Rover writes key	1. Instrument adjustment 2. airbag repair 3. Engine and computer read and write 4. BCM module read and write 5. Reading and writing of various non -encrypted chips	Mainly work for Airbag repairng, No Welding No Disassembly Get Free ECU Uncover Tool
Highlight	Hardware upgrade, read and write data faster and more stable The upgrade frequency is faster. 1. 8 -foot removal of adapter (CG100 Many customers ask) 2. CAN line communication (similar to CG70) 3. BMW Land Rover Key match (CG100 cancel KEY adapter) 4. Can support more chips, keep pace with the times, and have strong new MCUs. The adapter is upgraded. 5. BCM can be enhanced, for battery repair, and various types of common problems (steering angle), the future growth will be stronger. 6. All of the CPT wiring will be added (add 3-5K airbag model at a time), mainly for foreign models	Support multiple instrument and airbag repair BMW FRM repair Mercedes -Benz Porsche Battery Repair	No need to disassemble the airbags to repair the airbags without welding 1. Similar to the CPT device, the price is more competitive 2. The operation is easy, no need to disassemble the welding line 3. models are constantly upgrading
Support Models	A total of 1538 chips, 4600 instrument mileage, more than 4,500 ACUs, ECUs, BCM; Contact sales to get the support list	Support 1503 chip models, 4767 instruments, 4570 airbags, ECU, BCM Contact sales to get the support list	Support 3806 airbag models, continuously increasing (final 5000+); Contact sales to get the support list

CGDI CG100X Support List Check

CG100X Latest Update Information: (CG100X Latest Software Free Download)

CG100X V1.1.8.0 (2023.07.02)

The following models are added for dashboard:

Beijing Jeep Warrior 100630 ATMEGA16
Dayun ZB265V1 ATMEGA16
Dayun ZB265AV3 ATMEGA16
Dayun ZB265A ATMEGA16
Dayun ZB267AV1 ATMEGA16
DongFeng CK3820010-CP07G-1：560 ATMEGA169
FuDi Foday ZB158H7B3 ATMEGA16
FuDi ZB157J1B5 ATMEGA16
FOTON Sapu 1D16937600075ZB158P2A ATMEGA16
FOTON Aoling ZB258E2A1 ATMEGA16
FOTON Aoling ZB158E8D ATMEGA16
FOTON ZB258T2A6L0376010021B0 ATMEGA16
FOTON ZB258E8B4 ATMEGA16
FOTON ZB258E8B13 ATMEGA16
FOTON ZB158T2A6 ATMEGA16
FOTON 1B17037620004 ATMEGA169
FOTON 1B17037620001 ATMEGA169
FOTON 1B16237601001 ATMEGA169
FOTON Aoling express 1B18037600008ZB258E3 ATMEGA16
FOTON L0376010079A0239AE ATMEGA169
FOTON L0376010034A0239AE ATMEGA169
FOTON YULING 1B14837600013ZB140AE ATMEGA169
HaFei Zhongyi 9 ATMEGA169
HuangHai ZB158JIF ATMEGA16
HuangHai Yellow sea ZB158J ATMEGA16
HuangHai ZB158J1B3 ATMEGA16
HuangHai PIKAZB158JIB ATMEGA16
Geely Kingkong LG-1 ATMEGA169
Geely England ZB151 ATMEGA169
Geely ZiYouJian ATMEGA169
JAC Ruifeng 94004-V2313 ATMEGA16
JinBei ZB158P7H ATMEGA16
WuLing ZB169N-A24532991 ATMEGA16
FAW JiaBao ATMEGA169
FAW jiabao3820010-D6J6V2 ATMEGA169
FAW jiabao3820010-D6J61594 ATMEGA169
FAW jiabao3820010-8E1(1：660) ATMEGA169
FAW Jiabao 3820010D2E ATMEGA169
ChangAn Star leopard CK3820-100N17-G ATMEGA169
ChangAn Star leopard CK3820-100W2-GS ATMEGA169
ChangAn Star leopard CK3820-100J1-G ATMEGA169
ChangAn Star leopard CK3820-100P1-G ATMEGA169

CG100X V1.1.7.0 (2023.06.28)

1.Added 28 models to airbag.
2.Added 5 models to read-write.

The following models are added for airbag:

Honda 77960-TLA-E220-M4 SPC56AP54
Honda 77960-TLA-F040-M4 SPC56AP54
Honda 77960-TLA-H010-M4 SPC56AP54
Ford C1BT-14B321-AA XC2361A-72F
Ford C1BT-14B321-AC XC2361A-72F
Ford C1BT-14B321-AB XC2361A-72F
Ford C1BT-14B321-AD XC2361A-72F
Ford C1BT-14B321-AE XC2361A-72F
Ford C1BT-14B321-AF XC2361A-72F
Ford C1BT-14B321-AH XC2361A-72F
Ford C1BT-14B321-AG XC2361A-72F
Ford C1BT-14B321-FA XC2361A-72F
Ford C1BT-14B321-FB XC2361A-72F
Ford C1BT-14B321-FC XC2361A-72F
Ford C1BT-14B321-FG XC2361A-72F
Ford C1BT-14B321-FH XC2361A-72F
Ford GN15-14B321-BA XC2361A-56F
Ford GN15-14B321-BB XC2361A-56F
Ford GN15-14B321-BC XC2361A-56F
Ford GN15-14B321-BD XC2361A-56F
Ford GN15-14B321-CA XC2361A-56F
Ford GN15-14B321-CB XC2361A-56F
Ford GN15-14B321-DE XC2361A-56F
WuLing 23618126 R7F7010083
WuLing 23764801 R7F7010083
Zhonghua 3099594(J3858144) 95080
Zhonghua 3101852(J3858164) 95080
Zotye J3858388(3658010001-B01) SPC560P40L1

The following models are added for dashboard read-write:

BYD AUTO HADF-3658100B R7F701009(read writer)
Volkswagen 6C0 959 655 AE TC224-16F(read writer)
Ford BM5T-14B321-BF 95320(read writer)
SAIC 10786524-01 R7F701009(read writer)
Hyundai 95910-F8800 XC2361A-72F(read writer)

CG100X V1.1.6.0 (2023.06.18)

1.Volkswagen MQB added “D70F3525+95320” meter adjustment models
2.Added 10 chips to Programer.
3.Added 31 models to airbag.
4.Added 5 models to read-write.

CG100X V1.1.5.0 (2023.06.10)

1.Added Volvo lithium battery CAN repair internal test model to BCM.
2.Added 26 models to dashboard.
3.Added 2 models to airbag.
4.Added 9 models to read-write.

The following models are added for dashboard.

Honda X-NV 2020- MB91F060BS
DongFeng Jingyi X5 2020- 24C02
DongFeng 360 2015- 9S12HA32
DongFeng Fengguang 370 2016- 24C04 (4G04)3plates and 2 needles
DongFeng ruiqi EV 2019- 24C04
FOTON Family 2017- 9S12XHZ512FOTON MP-X 2017- 24C08 (ATMLHXXX08)
FOTON Rowor little Diamond 2020- 24C16 (4G16)
FOTON Times lead5 2021- 24C08 (ATMLHXXX08)
FOTON Times lead6 2020- 24C08 (ATMLHXXX08)
FOTON XiangLing V3 2021- 24C16 (4G16)
Guojin Automobile junbxing 2022- 24C16
HEIBAO AUTO pantherQ3 2015- 24C04
JAC I5 2021- 24C04
JAC newKangling 2021- 24C04
JAC Sunray 2019- 24C08 (ATMLHXXX08)
JMC shunda 2019- R5F10DSKL (small screen (Dashboard)
LINCOLN DaLu 2017- 24C32
Chery Tiggo 5X 2021- 24C16
Hyundai Hongtu300 2020- 9S12XHY128
YAMAHA MT-09 2019- 93C86FAW
Jiefang Dragon VH 2018- 24C04FAW
Jiefang Dragon VH 2020- 24C16
Iveco DeYi 2016- 25040(25LC04)
CNHTC WANGPAI W1 2018- 24C04 (4G04)
Zongshen Electric four wheel 9S12ZVH128

The following models are added for airbag.

Honda 77960-THA-H120-M2 R7F701A223
Toyota 89170-78270 R5F61797

The following models are added for dashboard read-write.

BYD AUTO Qin EV 2022- 24C16 (read write)
Iveco Ousheng 2018- 25160 (Dashboard) + 95640 (BCM) (read write)
ChangAn EADO PLUS 2021- 24C16 (read writer)
Toyota 89170-BZ390 95640 (read writer)
FOTON J38580738 R7F701008 (read writer)
FOTON J38580738 (P1360010011A0) R7F701009 (read writer)
Chrysler 68068 616AD 95128 (read writer)
Roewe 10836975-01 R7F701009 (read writer)
MAXUS C00215300 A2C18993700 R7F701009 (read writer)

CG100X V1.1.4.0 (2023.06.03)

1.Added 27 models to dashboard.
2.Added 8 models to read-write.

CG100X V1.1.3.0 (2023.5.23)

1.Optimized the MQB dashboard decryption read and write function.
2.Added 32 models to dashboard.
3.Added 6 models to airbag.
4.Added 4 models to read-write.

CG100X Works on 2018 Land Range Velar - J8A2 - 14D374 - AE Bosch 0285013879 Airbag:

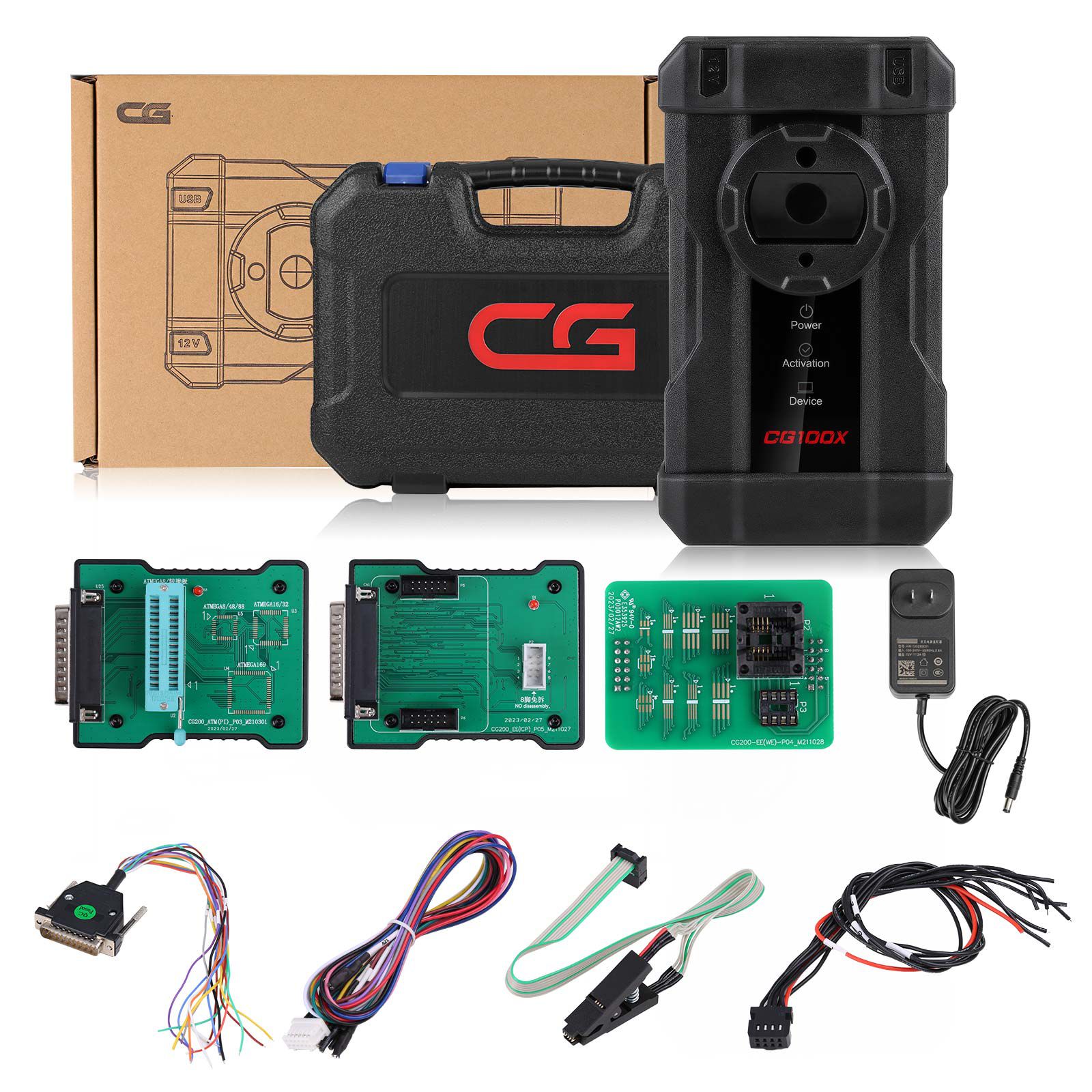

Package List:

1pc x CG100X unit
1pc x EEPROM holder
1pc x EEPROM adapter
1pc x PRO cable
1pc x USB cable
1pc x CAN cable
1pc x EEPROM solering cable
1pc x EEPROM clip
1pc x adapter
1pc x EEPROM adapter
