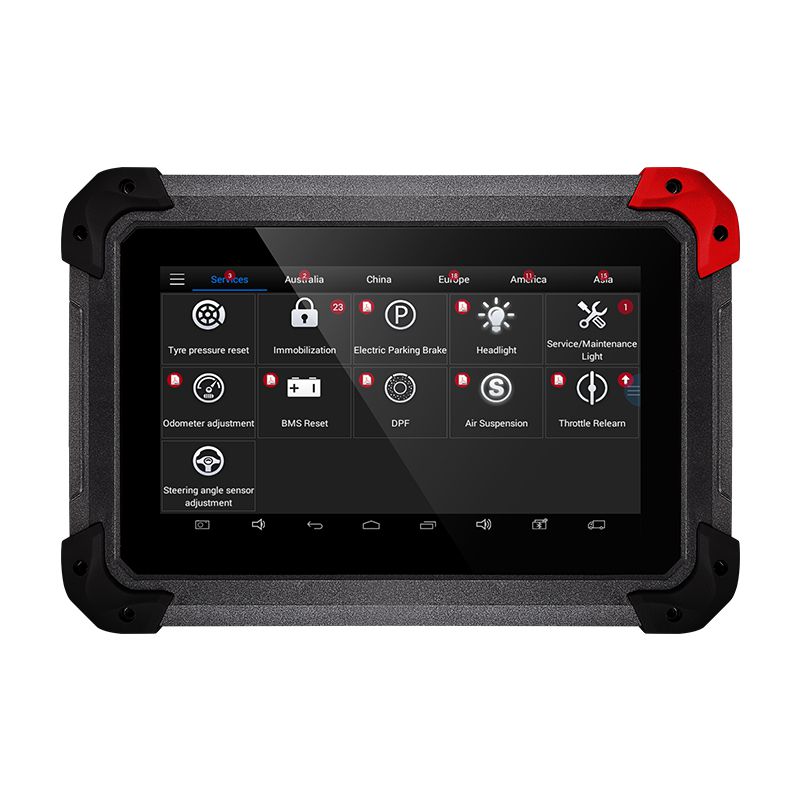

XTOOL EZ400 PRO Tablet Auto Diagnostic Tool Update Version of EZ400 Same As Xtool PS90 with 2 Years Warranty

• Easy registration with EZ400 PRO connected to WIFI
• Wireless diagnosis via Bluetooth

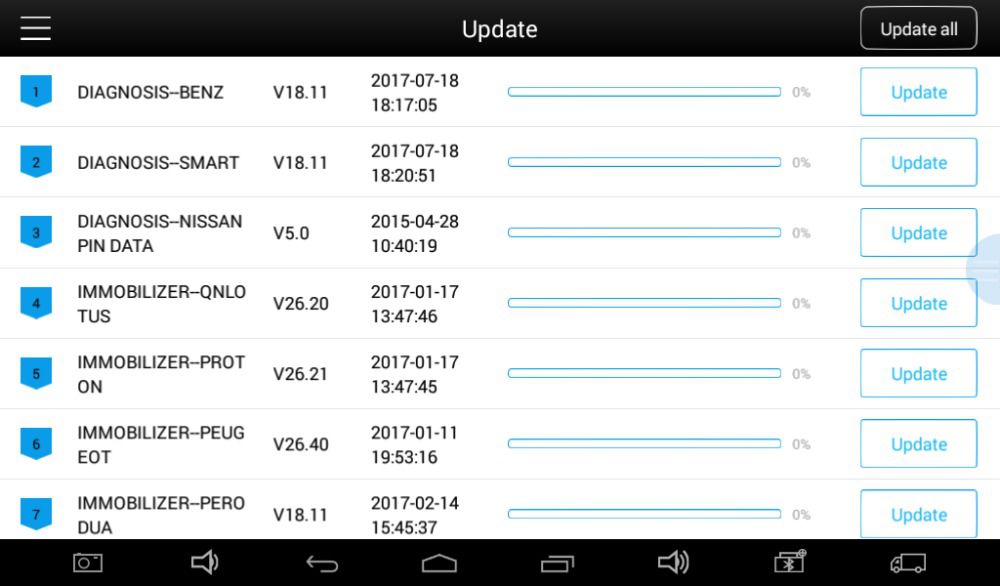

• One-click software update via WIFI
• Remote access

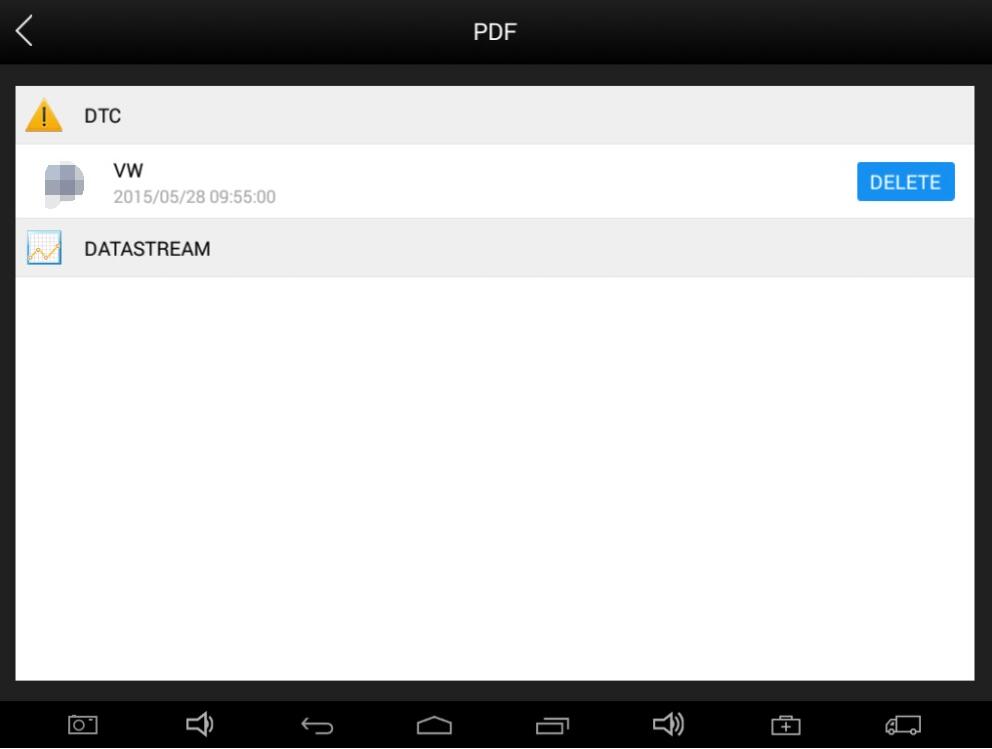

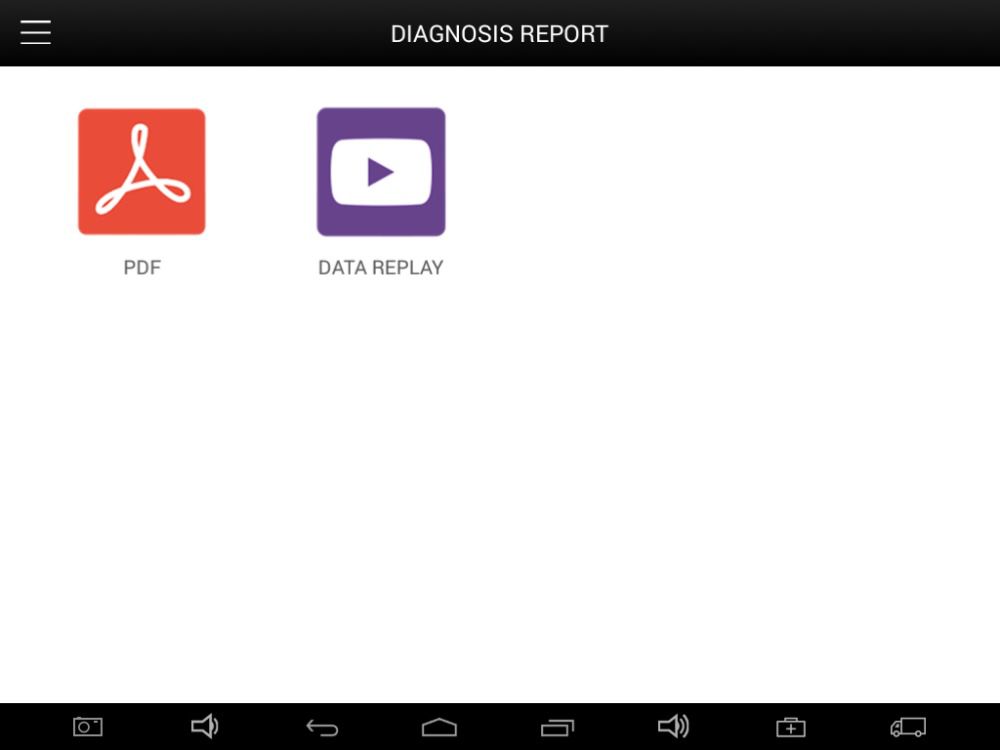

• Diagnosis reports in PDF file

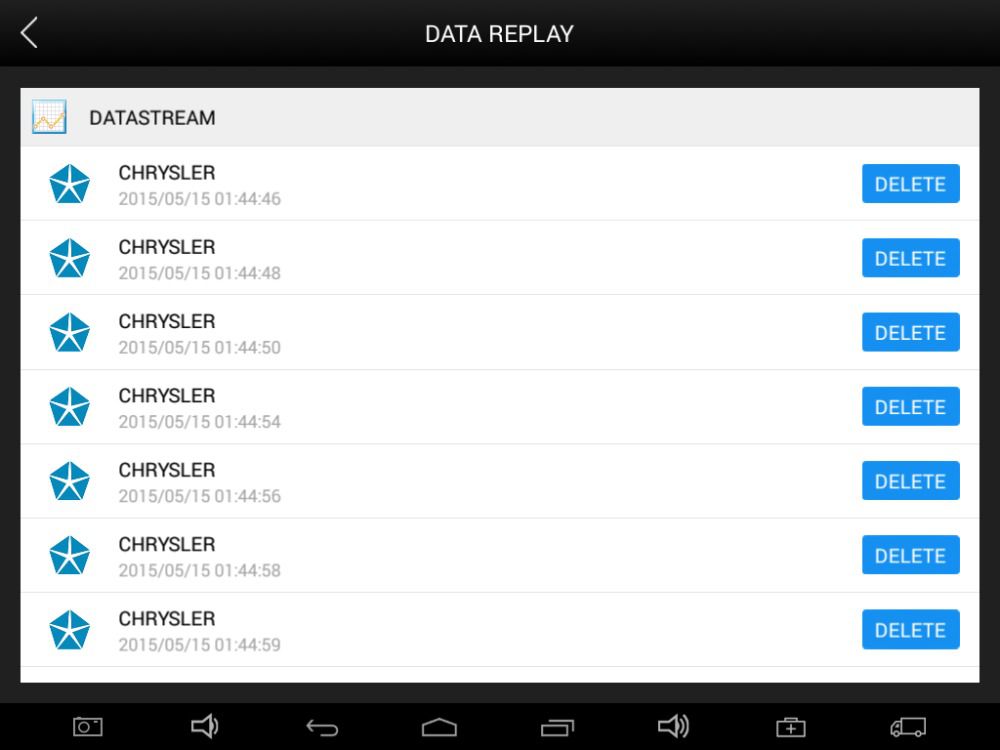

• Record and playback live data

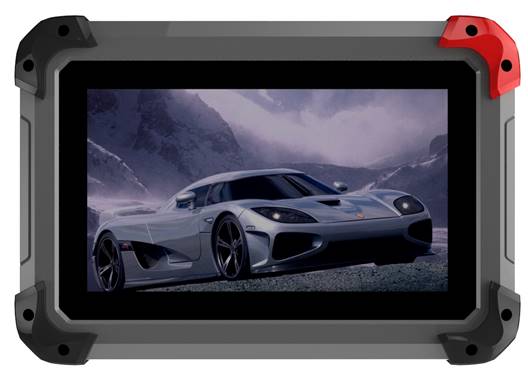

• 7 inch multi-touch screen
• On-board battery
• Extensive vehicle coverage for most US, Asian and European vehicle makes

1. The vehicle power supply has to meet the normal voltage limits DC4.8V---5

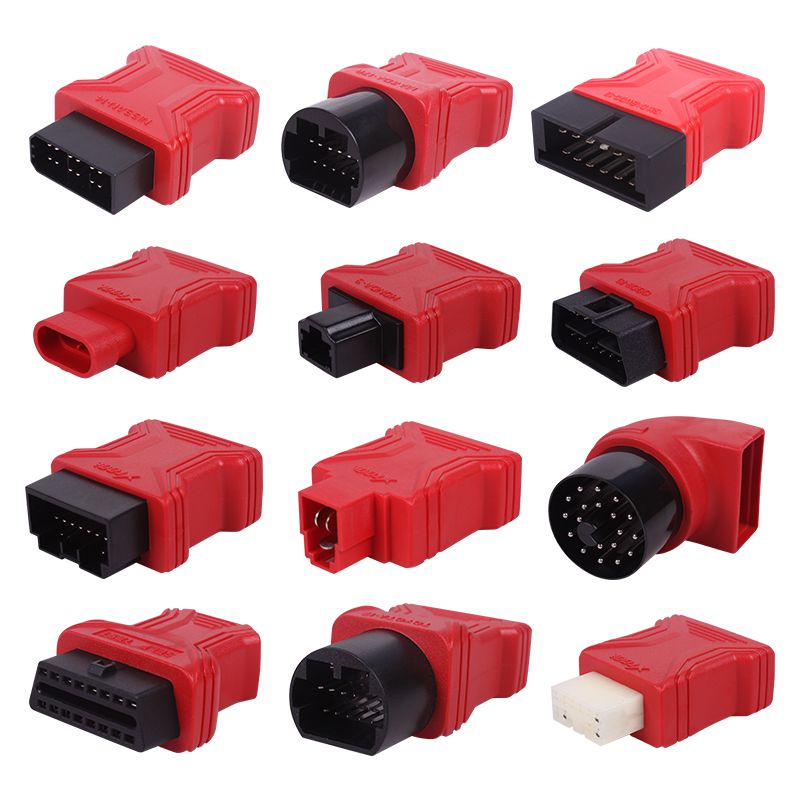

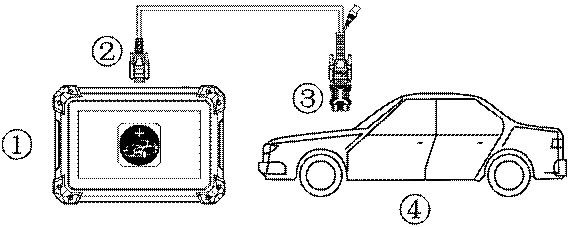

2. When pull and plug test wire harness, users should pinch the front-end of the wire harness to pull and plug, not pull the middle section of the wire harness. Users should check the corresponding direction of the port and plug in horizontally when they plug the wire harness, instead of inserting in an oblique way, which may damage the terminal.
3. When taking some special functions tests, users are required to operate the device according to operating instructions. For vehicle, it has to strictly meet the requirements, for example, the conditions that some vehicle models need to be reached are as follows: engine temperature 80℃/105℃, turn off the loads (such as headlights, air-conditioner, etc.), put accelerator pedal in released position, etc.
4. The ECU for Chinese domestic vehicle models are relatively disorderly, so when users meet conditions, such as the car can not be tested or the test data is wrong, they should consider whether the selected menu corresponds to the tested electronic control system, or they can find the car ECU and select the right menu according to the model number on the ECU label.
5. If users can not find the tested vehicle model or electronic control system in EZ400PRO test menu, they may need to update the software or consult XTOOL technical service department
6. Banned to have connection test by using harness not from Xtool to avoid unnecessary losses.
7. Banned to power off directly in the communication between EZ400PRO and vehicle. Users should cancel the task and return to the main interface, then power off.
8. The device should be put and lifted slightly to avoid collision when using EZ400PRO. When click the screen, touch it gently to guarantee the service life of the touch screen.
9. During long period of non-use, please disconnect the power and turn it off.

Different vehicles have slight different menus.

• Operating System: Android
• Processor：Quad-core 1.6GHz Processor
• Memory: 1G RAM，16G FLASH
• Display: 7.0 inch touch screen with 1024×600 resolution
• Sensors: Gravity Sensor，Ambient Light Sensor
• Audio Input/Output: Microphone, Dual Speakers, 4-Band 3.5 mm stereo/standard headset jack
• Power and Battery: 4000mAh, 3.7V lithium-polymer battery
• Power Voltage: 5V
• Power Consumption: 8W
• Operating Temperature: -20 to 50℃(-4 to 126℉)
• Humidity: <90%
• Dimension (L*W*H): 218*150*29mm
